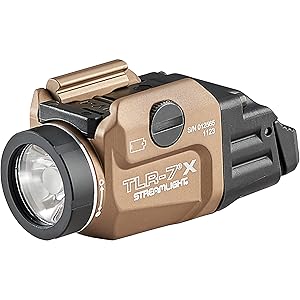

Streamlight 69456 TLR-7 X USB 500-Lumen Compact Tactical Weapon Light with High & Low Paddle Switches and Key Kit, Flat Dark Earth
Special Feature | Mountable, Lightweight, High Power, (1) SL-B9™ USB Rechargeable Lithium-Ion Battery, Key Kit, Interchangeable High and Low Switches, Rechargeable |
Color | Flat Dark Earth |
Power Source | Battery Powered |
Light Source Type | LED |
Material | Aluminum, Glass |
- Securely fits a broad range of weapons using key kit provided; prior to purchase refer to Streamlight's fit guide
- 500 lumens; 5,000 candela; 140m beam; runs 1 to 1.5 hours depending on battery type
- Multi-fuel technology that allows either use of Streamlight's properitory rechargeable battery or standard CR123A
- Rail clamp system securely attaches/detaches quickly and safely with no tools and without putting your hands in front of muzzle
- IPX7; waterproof to 1m for 30 minutes
Special Feature | Mountable, Lightweight, High Power, (1) SL-B9™ USB Rechargeable Lithium-Ion Battery, Key Kit, Interchangeable High and Low Switches, Rechargeable |
---|---|
Color | Flat Dark Earth |
Power Source | Battery Powered |
Light Source Type | LED |
Material | Aluminum, Glass |
White Brightness | 500 Lumens |
Included Components | User Guide, USB-C Cord, Battery, Mounting Kit, Weapon Light |
Product Dimensions | 2.58"D x 2.5"W x 2.5"H |
Voltage | 3 Volts |
Light Path Distance | 140 Meters |
Battery Cell Composition | Lithium Ion |
Item Weight | 0.17 Pounds |
Number of Batteries | 1 Lithium Ion batteries required. (included) |
Water Resistance Level | Waterproof |
Warranty Type | Limited Lifetime Warranty |
Brand | Streamlight |
Brightness | 5000 Candela |
Battery Description | Lithium |
Runtime | 1 hour |
Style | With USB Rechargeable Battery |
Finish Type | Flat |
Specification Met | CE, IPX7, ANSI |
Mounting Type | Weapon Mount |
Recommended Uses For Product | Tactical, Hunting, EDC, Law Enforcement, Every Day Carry |
Manufacturer | Streamlight |
UPC | 080926694569 |
Part Number | 69456 |
Item Weight | 2.72 ounces |
Item model number | 69456 |
Batteries | 1 Lithium Ion batteries required. (included) |
Finish | Flat |
Item Package Quantity | 1 |
Special Features | Mountable, Lightweight, High Power, (1) SL-B9™ USB Rechargeable Lithium-Ion Battery, Key Kit, Interchangeable High and Low Switches, Rechargeable |
Batteries Included? | Yes |
Batteries Required? | Yes |
Description Pile | Lithium |
Warranty Description | Limited lifetime warranty. |
Streamlight 69456 TLR-7 X USB 500-Lumen Multi-Fuel, Low-Profile, Compact Rail-Mounted Light, Flat Dark Earth

- Safe off feature prevents accidental activation; saves batteries
- White LED delivers a powerful beam with extensive range and selectable strobe mode
- Optimized electronics provide regulated intensity
- Rail grip clamp securely attaches/detaches without putting your hands in front of the muzzle
- Extensively live fire tested
- Serialized for positive identification
With Interchangeable Rear Paddle Switches, SL-B9 USB-C Rechargeable Battery Pack, Multi-tool, and Key Kit.
The TLR-7 X USB features multi-fuel capability — powered by either one CR123A (sold separately) or one Streamlight SL-B9 lithium-ion rechargeable battery pack (ncluded), both delivering 500 lumens and 5,000 candela.
The integrated rail clamp is designed to rapidly attach/detach from the side of the weapon, providing smooth installation and removal without having to put your hands in front of the muzzle. Customizable rear paddle switches, momentary and constant on operation, and a programmable strobe mode offer additional versatility for tactical applications.

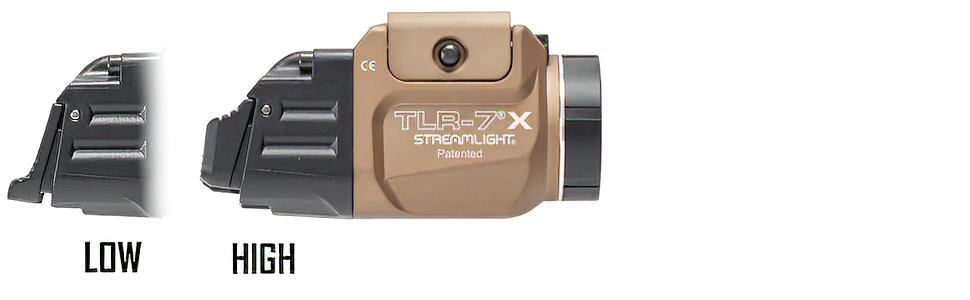

AMBIDEXTROUS REAR SWITCH OPTIONS
Maximize your weapon's platform with interchangeable rear paddle switches that allow you to customize your Streamlight TLR-7 X USB to your shooting style.
Interchangeable paddle switches are easy to swap out with multi-tool (included).
TLR-7 X USB Rechargeable Compact Rail-Mounted Light
LIGHT SOURCE | White LED, impervious to shock with a 50,000-hour lifetime |
OUPUT | 500 lumens, 5,000 candela peak beam intensity, and 140 meter beam distance; Custom TIR optic for concentrated beam with optimum peripheral illumination |
BATTERY | One Streamlight Li-Ion 850mAh USB-C rechargeable battery pack with integrated safety circuit, rechargeable up to 500 cycles; Charges within 2.5 hours via USB-C cord |
BODY & FACE CAP | 6000 Series machined aircraft aluminum with black anodized finish |
SWITCH HOUSING | Impact- and chemical-resistant engineered polymer |
LENS | High temperature, shock-mounted, impact-resistant BOROFLOAT glass |
ON/OFF | Rear switches left and right of trigger guard provide ambidextrous operation (available with high and low actuators); Momentary and constant on operation; User-activated strobe |
WATER RESISTANCE | IPX7-rated design; waterproof to 1 meter for 30 minutes |
OPERATING TEMPERATURE | -40°F to +120°F (CR123A) or -4°F to +120°F (SL-B9) |

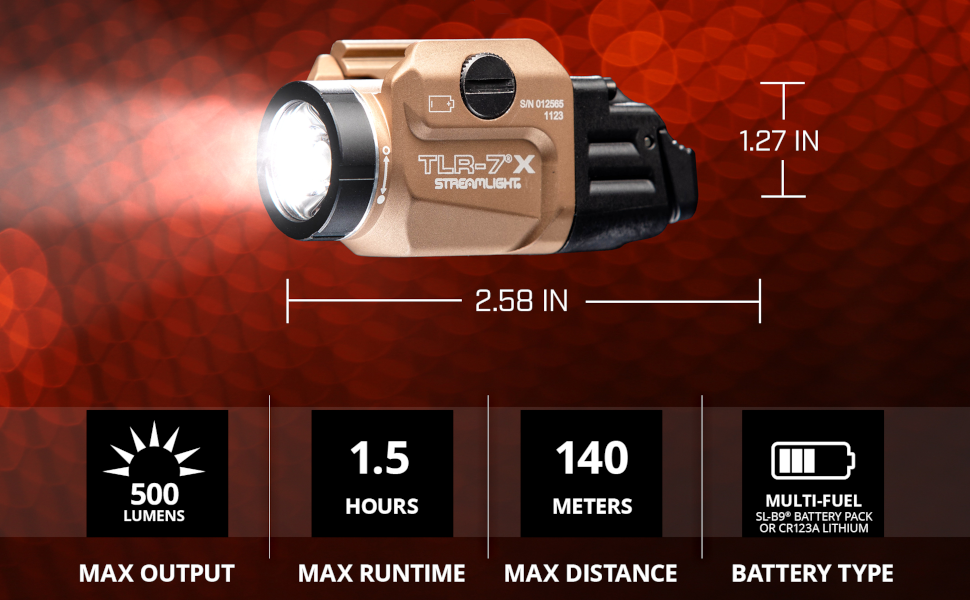

DIMENSIONS | Length: 2.58 in. (6.55 cm); Width: 1.18 in. (2.98 cm); Height: 1.27 in. (3.23 cm) |
WEIGHT | 2.64 oz (74.8 g) with battery |
INCLUDES | Interchangeable Rear Paddle Switches, SL-B9 USB-C Rechargeable Battery Pack, Multi-tool, and Key Kit |
MULTI-FUEL: Uses one SL-B9 battery pack (included) or one CR123A lithium battery (sold separately).

STREAMLIGHT TLR-7 X USB COMPATIBILITY LIST:
GLOCK
- Most models up to Gen 7: UNIV-1
- 17, 19 Gen 5: 1913-1
SIG SAUER
- 320 Compact & 1911 GSR: 1913-1
- 320 Carry & Full Size: 1913-3
- P200 Series (220, 2022, etc.): 1913-2
SMITH & WESSON
- TSW (with riveted rail) & 99: UNIV-2
- M&P (Full Sizes): 1913-2
BERETTA
- 92 FS/M9A1 Models: 1913-1
- 90TWO: 1913-2
- 92/96 A1: 1913-2 (tight slot fit)
- APX: UNIV-1 (loosely front to back)
- PX4 Storm Full Size: UNIV-2 (loosely front to back)
SPRINGFIELD ARMORY: XD (9, 40, 45, 9(M): UNIV-1
FN: FNS-40, FIVE-SEVEN, 509 & FNX: 1913-1
HK
- VP 9: 1913-1
- P30: 1913-2
CZ
- P-01, P-07 & P-10: 1913-1
- 75 SP-01: 1913-3
KIMBER: 1911 Custom: 1913-1
RUGER: SR-9: UNIV-1
1913 PICATINNY RAIL: Any 1913 key
This list represents handguns checked by Streamlight as of the current document revision date. TLR-7 and TLR-8 will fit many other guns with universal or 1913 (Picatinny) style rails. Refer to streamlight for the latest TLR-7 and TLR-8 compatibility list.
